Reporting Crashes for Android
Covered here are APIs relevant to reporting crashes for your Android apps.
Privacy Policy
It is highly recommended to mention in your privacy policy that you may be collecting logging data in order to assist with troubleshooting crashes.
With Instabug Crash Reporting there are two ways to have your application report a crash, either automatically or manually. After the crash is sent to your dashboard, you can sort and filter for specific crashes easily.
Automatic Crash Reporting
If you enable Crash Reporting, crashes will automatically be reported to and viewable from the crashes page of your Instabug dashboard.
You'll also see the trends covering the previous 7 days, including:
- Crash-free sessions: the percentage of sessions that ran and concluded without any fatal errors.
- Crash-free users: the percentage of users that haven't encountered any fatal errors.
- Crashing sessions: the number of sessions that ran and concluded with a fatal error.
- Affected users: the number of unique users who had one or more sessions that ended with a fatal error.
- Total number of occurrences: by hovering on it, you’ll get a breakdown of the number of fatal sessions, the number of OOM sessions, the number of ANR sessions, and the number of non-fatal sessions.
If there is a sharp decline in the crash-free sessions rate, an email will be sent to notify you.
ANR Crashes
By default, if Crash Reporting is enabled, Instabug captures any ANR that occurs within your app, along with the stack trace of the crash.
You can disable/enable ANR reporting using the following API:
CrashReporting.setAnrState(Feature.State.DISABLED)
CrashReporting.setAnrState(Feature.State.DISABLED);
Force Restarts
Starting from SDK version 11.1.0
, Instabug automatically reports Force Restarts. A Force Restart is when a user force terminates your application and re-launches it within 5 seconds, which could indicate performance issues.
Please note that Force Restarts reports will not contain a stack trace.
For Force Restarts to be detected on devices running Android KitKat (API 20) and below, the following security permission needs to be added:
<uses-permission android:name="android.permission.GET_TASKS"/>
App Hangs
Starting SDK version 11.5.0
, Instabug automatically reports App Hangs. An App Hang is captured when the main thread is blocked for more than 3 seconds. App Hangs that last more than 3 seconds are considered severe and are likely to cause user frustration. They are reported along with a stack trace for debugging.
Manual Crash Reporting
You can offer your users Instabug Bug Reporting to report bugs. However, you can use the following method and API to manually report any error or exception that you handle in your code and assign it a severity level.
Report Exception
To report exceptions manually, use the following method; Both errors and exceptions can be passed to this method:
val exception = IBGNonFatalException.Builder(NullPointerException("Test Exception"))
.setUserAttributes(mapOf("height" to "tall"))
.setFingerprint("My Custom Fingerprint")
.setLevel(IBGNonFatalException.Level.CRITICAL)
.build()
CrashReporting.report(exception)
IBGNonFatalException exception = new IBGNonFatalException.Builder(new NullPointerException("Test Exception"))
.setUserAttributes(new HashMap<>())
.setFingerprint("My Custom Fingerprint")
.setLevel(IBGNonFatalException.Level.CRITICAL)
.build();
CrashReporting.report(exception);
Here is another example:
IBGNonFatalException.Builder(NullPointerException("Test Exception"))
.setUserAttributes(mapOf("height" to "tall"))
.setFingerprint("My Custom Fingerprint")
.setLevel(IBGNonFatalException.Level.CRITICAL)
.build().let { exception -> CrashReporting.report(exception) }
Add Level to Exception
You can set different severity levels for manually reported exceptions using the following API:
val exception = IBGNonFatalException.Builder(NullPointerException("Test Exception"))
.setLevel(IBGNonFatalException.Level.CRITICAL)
.build()
CrashReporting.report(exception)
IBGNonFatalException exception = new IBGNonFatalException.Builder(new NullPointerException("Test Exception"))
.setLevel(IBGNonFatalException.Level.CRITICAL)
.build();
CrashReporting.report(exception);
Here are the different severity levels available. In case no level is indicated, the default level would be ERROR
IBGNonFatalException.Level.WARNING
IBGNonFatalException.Level.ERROR
IBGNonFatalException.Level.CRITICAL
IBGNonFatalException.Level.INFO
NDK Crashes
In the events that you're using a C++/NDK library or have code that runs at C++ level, the Instabug SDK will automatically detect and capture these low level crashes.
Adding the NDK Crashes Dependency
In order to start capturing NDK crashes, you'll need to add the below dependency to your app level gradle. Once it's added and the gradle is synced, NDK crashes will automatically be captured after the SDK is initialized and NDK crash reporting is enabled.
implementation 'com.instabug.library:instabug-ndk-crash:13.0.1'
Enabling and Disabling
NDK crash reporting is disabled by default if the NDK dependency is added, however it can be enabled using the below method.
CrashReporting.setNDKCrashesState(Feature.State.ENABLED)
CrashReporting.setNDKCrashesState(Feature.State.ENABLED);
Deobfuscation
Since native code is always obfuscated, you'll need to follow the instructions mentioned in the deobfuscation page in order to make the stack traces more readable.
Grouping
When an already existing crash occurs once more for any user, that crash is reported as an occurrence in the original entry. However, in order to calculate whether a crash already exists and needs to be grouped, Instabug generates a fingerprint based on attributes used in the grouping logic.
The default Instabug grouping algorithm uses a mix of the exception and stack trace information. In some cases, you might want to change how the issues are grouped together using custom grouping or fingerprints.
Custom Grouping
Required Mapping Files
Please note that in order for custom grouping to be applied, mapping files are required to be uploaded first, otherwise, default grouping will be applied. For more information on uploading mapping files, please visit the deobfuscation page.
One way to customize how crashes are grouped together is by providing Instabug with packages that you would like to ignore from our default grouping logic. If you define a package to be ignored, the frame with that package will be skipped and then we'll move on to find the next one that is not on your ignored list. This is done on an application level by going to your Application → Settings → Custom Crash Grouping. A few examples of this can be found below with an expected input.
Expected Input:
- Package
- Packages will be matched on a "starts with" basis:
- Addingcom.thirdParty
will ignore any package we find in the stack trace that start withcom.thirdParty
- Examples:com.thirdParty.start
,com.thirdParty.start.user
,com.thirdParty.end
etc.
Example 1
Sample Stack Trace:
com.thirdParty.login
com.app.page
com.android.error
com.app.user
com.app.homepageloading
- Without custom grouping, Instabug would group the crash based on
com.thirdParty.login
since it's the first non-system frame - With custom grouping, having
com.thirdParty.login
on your list of package to ignore, we will skip the first framecom.thirdParty.log
and the crash will be grouped based oncom.app.page
Example 2
Sample Stack Trace:
com.thirdParty.login
com.thirdParty.userlogged
com.app.page
com.android.error
com.app.user
com.app.homepageloading
- Without custom grouping, Instabug would group the crash based on
com.thirdParty.login
since it's the first non-system frame - With custom grouping, having
com.thirdParty
on your list of package to ignore, we will skip the first two frames [com.thirdParty.login
andcom.thirdParty.userlogged
] and the crash will be grouped based oncom.app.page
Custom Fingerprinting
Overriding the default grouping
Please note that using custom fingerprinting will override Instabug's default grouping by sending a fingerprint string.
In the event that you'd like to report the exception manually with a custom grouping fingerprint in mind, you can use the below APIs to do just that.
CrashReporting.reportException(throwable, "exception identifier", userAttrsMap, "grouping fingerprint");
CrashReporting.reportException(throwable, "exception identifier", userAttrsMap, "grouping fingerprint")

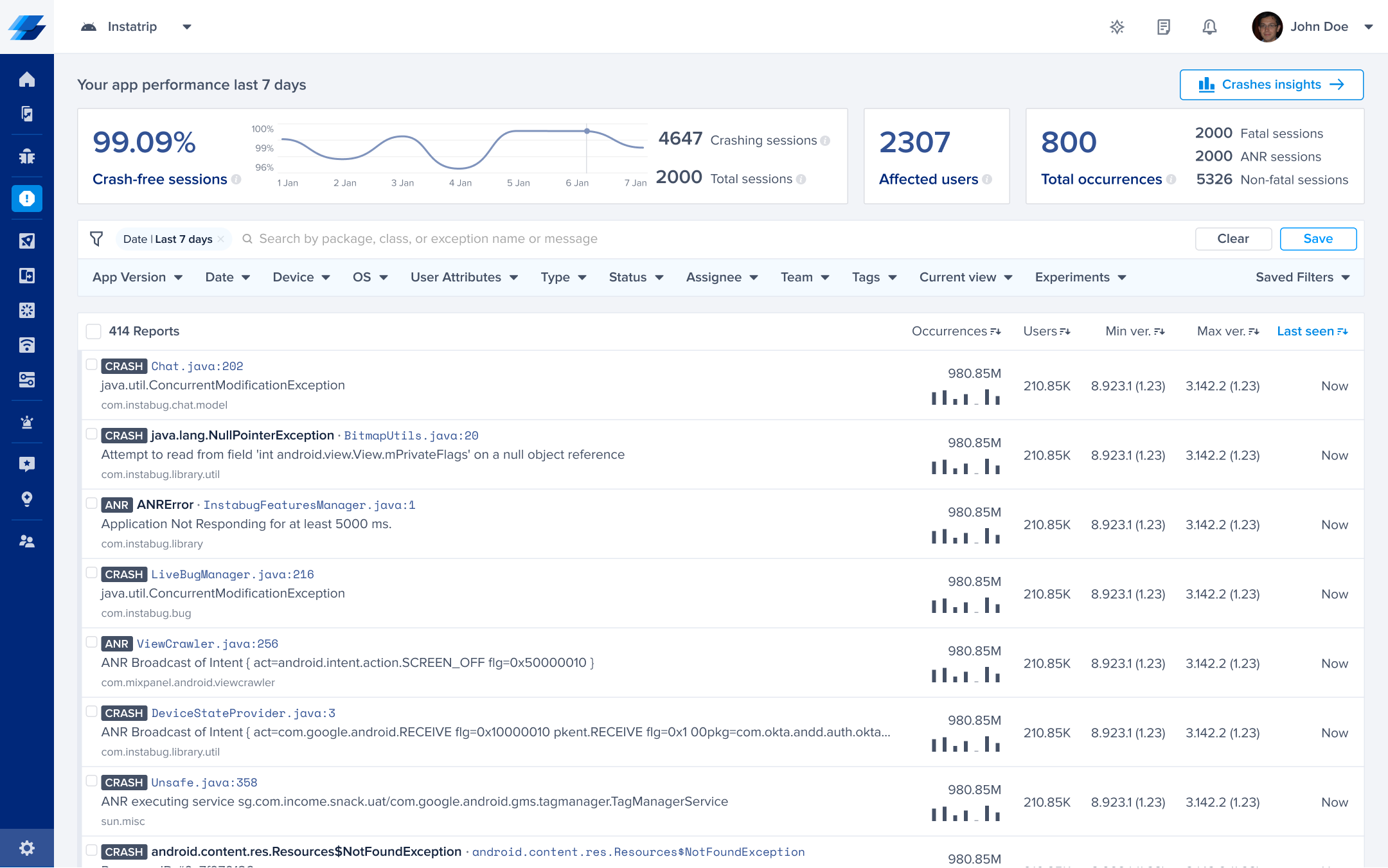

Crashes List
This section contains a list of all the crashes that have been reported by your application. The title of each crash is usually the most significant line in the stack trace.
Next to each crash in the list, you can find the following details, all of which can be used to sort the crashes:
- Occurrences: The number of times this crash has occurred and a bar graph representing its occurrences over the past seven days.
- Users: The number of users affected by this crash.
- Min ver.: The oldest app version that was affected by this crash.
- Max ver.: The latest app version that was affected by this crash.
- Last seen: The last time an occurrence of this crash was reported.
You can then filter for crashes that match any of the following criteria:
- App version
- Date
- Device
- OS
- User attributes
- Type
- Status
- Assignee
- Team
- Tags
- Current view
- Experiments
Updated 4 months ago
Learn more about the content contained in crash reports as well as how to deobfuscate them. You can also use callbacks to collect additional information.
